High-Frequency (HF) Milling Bit (Radio-Frequency (RF) Milling Bit)

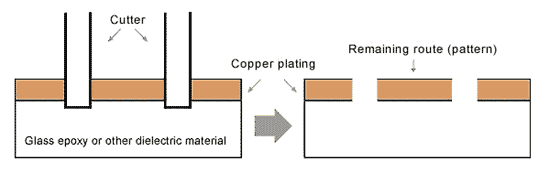

Advantages - Good high-frequency characteristics
- Channel width does not change with milling depth
Disadvantage - Thin cutters break easily


4mil ( 0.1mm) or less
6mil ( 0.15mm)
Since this size breaks easily, we recommend using it on boards with copper plating of 18µm or less in thickness and a spindle motor speed higher than 50,000 rpm, and milling speed slower.
8mil (0.2mm) Wherever possible, use this size on boards with copper plating of 18 µm or less in thickness and at slower than normal milling speeds.
12mil (0.3mm) Wherever possible, use this size on boards with copper plating of 18 µm or less in thickness.
20mil ( 0.5mm) This size can be used under normal operating conditions.


Read more>>
About the minimum width of milling
The relationship among the spindle rotating speed, processing speed, and the tools

50µm(2mil) line and space, the state of the art!

FP-21T Precision
Stepping method and non-contacting pressure foot lead to the fine processing technology
