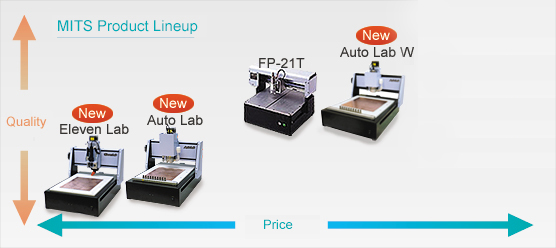

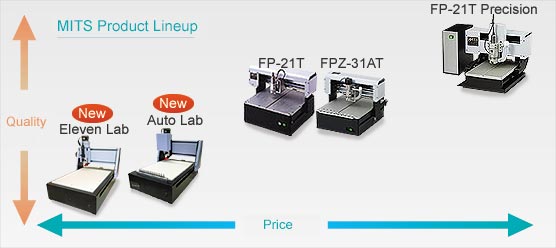

The purpose of all the lineups & comparison of specification
1. Popular models for research and development purposes
--- For prototype board making
These board makers are developed for our customers who are seeking
for an affordably priced compact-size board maker.
| Model |
Seven mini
|
Eleven T
|
| Minimum pattern width (mm) |
0.1 (4 mil) |
| Working area (mm) |
270 x 200 (10" x 8") |
310 x 220 (12" x 9") |
| Control axis |
X, Y |
X, Y |
| Control motor |
Stepper motor |
| Resolution (µm) *4 |
6.35 (0.25 mil) |
| Maximum millig speed (mm/sec.)
*1 |
45 (1.8") |
Spindle speed (min-1)
Spindle motor |
5,000 - 41,000
DC Spindle |
5,000 - 41,000 (model 40)
5,000 - 60,000 (model 60)
DC Sindle
|
| Drilling (mm) |
0.2 - 3.175 (8 -125mil) |
| Maximum drilling cycle (cycles/min) *2 |
60 |
60 (80 *3) |
| Maximum drilling stroke (mm) |
7 (0.28 mil) |
8 (0.31 mil) |
| Tool change |
Lever action clamp |
Milling
method |
Absolute |
No |
No |
Incremental
- Pressure foot
- Non-contact |
Yes
Yes
No |
Yes
Yes
Eleven T HP |
| Compressed air (Mpa) |
------ |
0.5 (required for HP type) |
| Power consumption |
100VA |
150VA |
Machine dimensions
W x D x H (mm) |
440 x 380 x 340
(17" x 15" x 13") |
495 x 400 x 370
(20" x 16" x 15") |
| Machine weight (kg) |
Approx. 21 (47 lbs) |
Approx. 23 (51lbs) |
| Features |
Affordable |
High precision, high rigidiry,
ideal for high- frequency circuits |
Vacuum
table  |
No |
No |
| Fiducial camera |
No |
Yes |
*1 : Appropriate speed depends on
tool, material of board and so on.
*2 : This is a repeat count of drill's
up and down on the maximum stroke.
Appropriate strokes depends on the diameter of tool.
*3 : In case of 80 strokes, maximum
drilling stroke becomes shortend. (to be adjusted at the factory)
*4 : The smallest-step figures for
instruction to each of 4 axes.
They do not represent the accuracy of axis positioning.
|
2. High precision models for research and development purposes
----- For high precision prototype board making and for multi-purpose
use
This model series enable you to utilize the 3-axis control system.
The control system is up-graded and mechanically re-designed to
minimize vibrations.
They enable you to mill with sharp pattern edge, and they are
suitable for high-frequency circuit products.
Also their rigidity is quite high and their spindle motors are
of RF motors with high torque.
This series enable you to operate the machine for long consecutive
hours, and can handling the milling of thick materials.
(Non-contact milling type is also
available for each model.)
| Model |
FP-21T
|
FP-21T Precision
|
| Minimum pattern width (mm) |
0.1 (4 mil) |
0.05 (2 mil) |
| Minimum millig width (mm) |
0.1 (4 mil) |
0.05 (2 mil) |
| Working area (mm) |
350 x 250 (14" x 10") |
150 x 150 (6" x 6") |
| Control axis |
X, Y, Z |
| Control motor |
5 phase stepper motor |
| Resolution (µm) *4 |
4 (0.16 mil) |
1 (0.04 mil)
|
| Maximum millig speed (mm/sec.) *1 |
50 (2.0") |
60 (2.4")
|
| Travel speed (mm/sec.)
*2 |
80 (3.2") |
60 (2.4") |
Spindle speed (min-1)
Spindle motor |
5,000 - 40,000 (model 40/U)
5,000 - 60,000 (model 60)
5,000 - 100,000 (model 100) |
5,000 - 40,000
Dynamic runout: less than 10µm
DC Spindle |
| Drilling (mm) |
0.2 - 3.175 (8 - 125 mil) |
0.05 - 3.175 (2 - 125 mil) |
| Maximum drilling cycle (cycles/min) *2
|
80 |
| Maximum drilling stroke (mm) |
30 (1.18 mil) |
| Tool change |
Collet chuck |
Milling
method |
Absolute |
Manual switching |
Incremental
- Pressure foot
- Non-contact |
Yes
Yes
FP-21T HP |
Yes
--------
Yes (Air) |
Compressed air (Mpa) |
0.5 (required for HP type) |
0.5 |
| Power consumption |
250VA |
250VA |
Machine dimensions
W x D x H (mm) |
620 x 505 x 420
(24" x 20" x 17") |
Machine: 415 x 456 x 375
(16" x 20" x 15")
Controller: 125 x 235 x 305
(5" x 9" x 12")
|
| Machine weight (kg) |
Approx. 42 (93 lbs) |
Machine: 36 kg (80 lbs)
Controller: 4 kg (91 lbs)
|
| Features |
High precision, high rigidity, ideal for teflon
circuit board |
Ultra-high precision, high rigidity,
ideal for high-frequency circuits |
| Vacuum
table |
VT-ABS |
VTP-CRM |
| Fiducial camera |
Yes |
Yes |
|
3. Auto-tool-change type --- For prototype board making
| Model |
Eleven Auto
|
FPZ-31AT |
FPZ-73AT-B
|
| Minimum pattern width (mm) |
0.1 (4 mil) |
| Working area (mm) |
320 x 220 (13" x 9") |
325 x 325 (13" x 13") |
425 x 425 (17" x 17") |
| Control axis |
X, Y, Z |
| Control motor |
Stepper motor |
5 phase stepper motor |
| Resolution (µm) *4 |
10 (0.4 mil) |
6.35 (0.25 mil) |
4 (0.16 mil) |
| Maximum millig speed (mm/sec.) *1 |
45 (1.8") |
130 (5.1") |
Spindle speed (min-1)
Spindle motor |
5,000 - 41,000
DC Spindle |
5,000 - 60,000 (model 60)
5,000 - 100,000 (model 100)
HF Spindle |
5,000 - 60,000 (model 60)
5,000 - 100,000 (model 100)
HF Spindle |
| Drilling (mm) |
0.2 - 3.175 (8-125 mil) |
| Maximum drilling cycle (cycles/min)
*2 |
60 (80 *3) |
60 (80 *3) |
120 |
| Maximum drilling stroke (mm) |
45 (1.77 mil) |
40 (1.57 mil) |
40 (1.57 mil) |
| Tool change |
10 Automatic |
10 Automatic |
26 Automatic |
Milling
method |
Absolute |
No |
No |
No |
Incremental
- Pressure foot
- Non-contact |
Yes
Yes
No |
Yes
Yes
FPZ-31AT HP |
Yes
Yes
Yes |
| Compressed air (Mpa) |
------ |
0.6 |
0.6 |
| Power consumption |
200VA |
270VA |
300VA |
Machine dimensions
W x D x H (mm) |
570 x 600 x 450
(22" x 24" x 18") |
575 x 700 x 450
(23" x 28" x 18") |
680 x 815 x 480
(27" x 32" x 19") |
| Machine weight (kg) |
Approx. 70 (155 lbs) |
Approx. 60 (133 lbs) |
Approx. 65 (144 lbs) |
| Features |
High precision, high rigidity, with
dust-proof, acoustic cabnet |
Auto-tool change
High rigidity |
Auto-tool change
High rigidity |
| Vacuum
table |
VT-ABS |
| Fiducial camera |
Yes |
Yes |
Yes |
|
|
|
|
 |
|
his machine can be used for various
purposes such as:
- Digitizer
- Countersunk milling of thick materials
(Absolute Milling)
- Normal milling of ordinary materials
(Incremental Milling)
- Milling of long-sized PC Board (Optional)
>>For More details of DFM-300
|
|
|
|
