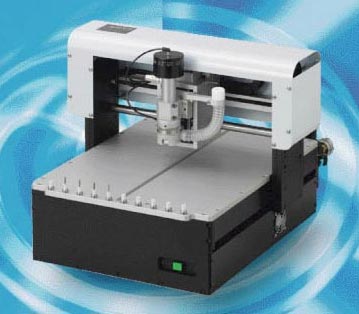

Specifications Model FPZ-31AT Working area (mm) 325 x 325 (13" x 13") Table size (mm) 445 x 585 (18" x 23") Control axis X, Y, Z Control motor Stepper motor Resolution (µm) 6.35 (0.25 mil) Minimum pattern width (mm) 0.1 (4 mil) Minimum milling width (mm) 0.1 (4 mil) Maximum drilling stroke (mm) 40 (1.57 mil) Travel speed (mm/sec) 45 (1.8") Spindle speed (min-1) Spindle motor 5,000 - 60,000 (model60) 5,000 - 100,000 (model100) HF Spindle Drilling 0.2 - 3.175 mm (8 - 125 mil) Maximum drilling cycle (cycles/min) 60 (80*) Tool change 10 / Automatic Power consumption 270VA Machine Dimensions W x D x H 575 x 700 x 450 mm (23" x 28" x 450") Weight (kg) Approx. 60 kg
