Easy-to-use package for creating artwork, especially high-frequency
patterns.
You can correct any errors in your DXF file.
Software Comparisons
Compare the features of MITS software packages
Programmable Devices and CAD
Software
Version Upgrade Information
|
| DXF
data and closed loop |
One of the procedures to design the high-frequency circuit
pattern is to use drawing CAD. The data designed by these CAD
are outputted by DXF file format.
In order to input the DXF data into the PCB prototyping machine
or other simulation software, you have to make DXF data closed

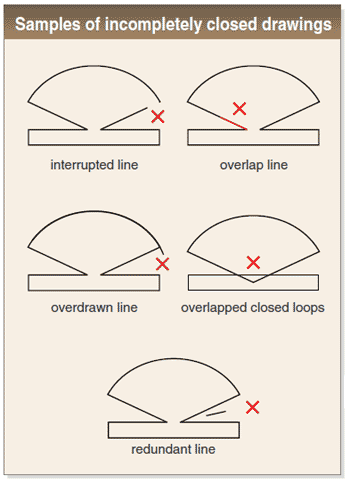

loop, otherwise these are unacceptable. The following is the
typical examples of unclosed loop,
The illustrations above are exaggerated to some degree, But
it causes the error and trouble unable to be accepted, even
if it can detectable without enlargement. In case of the complicated
design, there can be several dozen unclosed loop place.
>> See more detailed information of DXF data
|
|
|
